Homopolymer Acrylic Dust Filter Bag Normal Temperature ,Dust
Collector
1. Operation temperature 110 Deg c,
2. the max surge is 130 deg c.
3. good anti-acid, good anti-alkali ,good hydrolysis stability
4. Mean Air Permeability: 10-15m3/m2/min@12.7mmH2O
5. Avaiable Finish: singed,calendar,PTFE membrane,W/O
Description:
Acrylic dust filter bag (Homopolymer Acrylic Felt) Normal maximum continuous operating temperature is 125degrees.
General applications include: dryers, electric furnace, aluminum
reduction and primary or secondary smelting.
The chemical resistance is satisfactory to most mineral and organic
acids. Superior to polyamides and polyesters in this regards.
Acrylic dust filter bag resistance to alkalis is inferior to most
fibers except natural protein fibers such as silk and wool.
Acrylic dust filter bag has fair resistance to most oxidizing
agents and is superior to polyamides and protein fibers in this
respect.
It has excellent resistance to most common organic solvents.
Overall, acrylic has good acid resistance,high resistance to
hydrolysis and good temperature resistance. Acrylic is more costly
than polyester and polypropylene.
Specification:
Size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
Any length is available. Special size is customizable.
Process Method: sewing or welded

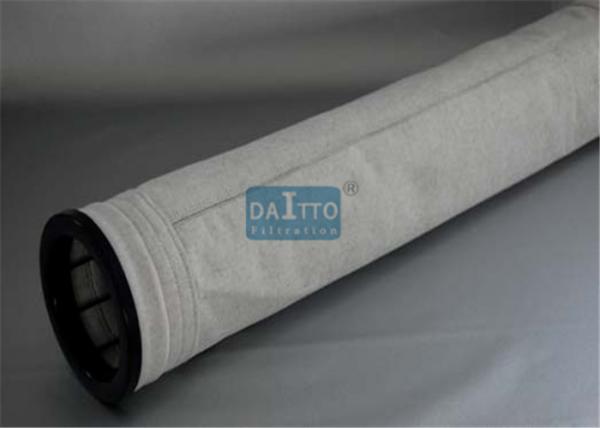

Dust collector filter bag tops include:Beaded snap band top, corded
or ring top, raw top, flat sewn top, top with grommet, top with
loop, gasket top and other.
| Model No. | Material | Weight | Thickness | Breaking strength | Using temperature |
| | g/m2 | mm | vertically | horizontally | ℃ |
| polyester needle felt | polyester fibre | 400-650 | 1.7-2.05 | 900-1140 | 1100-2000 | ≤130 |
| polypropylene needle felt | polypropylene fibre | 400-650 | 1.8-2.6 | 950-1500 | 900-1400 | ≤130 |
| anti-static needle felt | polyester fibre | 400-600 | 1.6-2.4 | 1000-1400 | 800-1200 | ≤130 |
| electric fibre |
| water and oil replelient needle felt | polyester fibre | 400-600 | 1.4-1.9 | 900-1140 | 1100-2000 | ≤130 |
| coating |
| FMS needle felt | high temperature resisting fibre | ＞800 | 1.8 | 1600 | 1400 | ≤260 |
| metamax needle felt | metamax fibre | 500 | 2.3 | 1000 | 900 | ≤204 |
| PPS needle felt | poly-p-propylence | 500-550 | 2 | ≥800 | ≥1200 | ≤170 |
| PTFE coated needle felt | polyester fibre or metamax needle felt | 400-650 | 1.4-2.3 | | | ≤260 |
| PTFE coating |
| P84 | P84 fiber | 500 | | | | ≤260 |
| fiberglass | glass fiber | 900 | | | | 240 |
Advantage:
• High mechanical characteristics
• Excellent resistance to hydrolysis
• Optimal heat stability both in dry and wet conditions
• Optimal resistance to chemical agents
• Extraordinary resistance to light, weathering, mildew and
bacteria
Application:
• Power Generation
• Municipal Waste incinerator
• Cement
• Limestone
• Asphalt plants
• smelting
eg:Homopolymer Acrylic Dust Filter Bag Normal Temperature ,Dust
Collector
| Material | Acrylic Filter Fabric/Acrylic Scrim |
| Weight(g/m2) | 500 |
| Thickness(mm) | 2.0 |
| Air permeability(m3/m2.min) | 14 |
| Tensile strength(N/5×20cm) | Warp | ＞700 |
| weft | ＞1000 |
| Break elongation(%) | Warp | ≤25% |
| weft | ≤45% |
| Thermal shrinkage(%) | Warp | ≤1.0% |
| weft | ≤1.0% |
| Working Temperature | 125℃ |
| Peak Tmeperature | 140℃ |
| Finish Treatment | Heat Set, Singed, Canlendered |
|
| Note | The parameters above come from ideal lab condition, the performance will change a little bit in line with actual
application |
FAQ:
Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D,
production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is
not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30%
T/T in advance ,balance before shipment. ( Mainly accept Paypal,
West Union and T/T)
Shanghai Daitto Filtration is one of China dust collector filter bag manufacturers, factory
and supplies, is making and supplying China polyester dust
collector filter bags, nomex aramid dust collector filter bags, pps
dust collector filter bags, p84 dust collector filter bags, ptfe
dust collector filter bags, fiberglass dust collector filter bags,
acrylic dust collector filter bags, ptfe laminated dust collector
filter bags, high temperature dust collector filter bags with good
quality and good prices.
