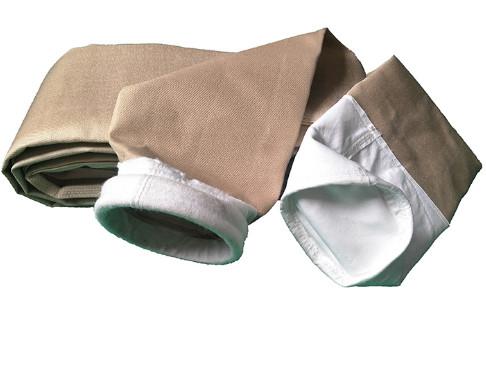

High temperature silicone glass fiber cloth filter bag
Description:
Industrial Fiberglass filter bag is used widely.
1. Main products: two categories of medium alkaline and alkaline
free glass fiber filter cloth(bag).
2. various types:heat treatment,silicone oil, graphite.
3. various thickness:0.3-0.5mm
4. various diameters:dia.120mm-300mm
5. texture:sloping weave,plain weave, satin,broken twill.
6. The textured fiber glass woven fabric material is partially or
wholly composed of bulky yarn,featured with bulky yearn thread,
strong covering capability,and filtering effect better than
open-wdth filtering, its dust-removal efficiency reaches
99.3%,filtering speed is0.6-0.8m/min.
Specification:
Dust collector filter bag tops include:Beaded snap band top, corded
or ring top, raw top, flat sewn top, top with grommet, top with
loop, gasket top and other.
Size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
Any length is available. Special size is customizable.
Process Method: sewing or welded
| Article name | cement dust collector filter bag |
| Fiber material | PET, acrylic, nomex, PPS, P84, glassfiber, PTFE |
| Weight(g/m2) | accroding to material |
| Thickness(mm) | accroding to material |
| Air permeability(m3/m2.min) | accroding to material |
| Work temp(℃) | continuous | accroding to material |
| peak | accroding to material |
| Tensile strength(N/5×20cm) | Warp | >900 |
| weft | >1200 |
| Break elongation(%) | Warp | <35 |
| weft | <50 |
| Thermal shrinkage(%) | Warp | ≤1.5 |
| weft | ≤1 |
| Finish | heat setting, singeing, calendering, soak with PTFE |
|
| Model No. | Material | Weight | Thickness | Breaking strength | Using temperature |
| | g/m2 | mm | vertically | horizontally | ℃ |
| polyester needle felt | polyester fibre | 400-650 | 1.7-2.05 | 900-1140 | 1100-2000 | ≤130 |
| polypropylene needle felt | polypropylene fibre | 400-650 | 1.8-2.6 | 950-1500 | 900-1400 | ≤130 |
| anti-static needle felt | polyester fibre | 400-600 | 1.6-2.4 | 1000-1400 | 800-1200 | ≤130 |
| electric fibre |
| water and oil replelient needle felt | polyester fibre | 400-600 | 1.4-1.9 | 900-1140 | 1100-2000 | ≤130 |
| coating |
| FMS needle felt | high temperature resisting fibre | ＞800 | 1.8 | 1600 | 1400 | ≤260 |
| metamax needle felt | metamax fibre | 500 | 2.3 | 1000 | 900 | ≤204 |
| PPS needle felt | poly-p-propylence | 500-550 | 2 | ≥800 | ≥1200 | ≤170 |
| PTFE coated needle felt | polyester fibre or metamax needle felt | 400-650 | 1.4-2.3 | | | ≤260 |
| PTFE coating |
| P84 | P84 fiber | 500 | | | | ≤260 |
| fiberglass | glass fiber | 900 | | | | 240 |
Advantage:
1. Dust collection efficiency is higher, can collect the dust
particle in size up to 0.3micron Make the dust content less than
2. Can capture the dust which electrical collector cannot capture;
and also can collector chemical content, such as Nitrate content,
sulfur content
3. Suitable for electrical load change, especially for collecting
small and try dust. Easier handle and recycle use of collected and
dry dust.
4. When use bag collector to collect dust or gas where there is
risk of explosion or with spark, it will be more safe.
Application:
widely use in industry of steel, chemical, waste incineration,
cement, construction material, thermoelectricity and other industry
FAQ:
Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D,
production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is
not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30%
T/T in advance ,balance before shipment. ( Mainly accept Paypal,
West Union and T/T)
